STEERING/SUSPENSION/SPRINGS/SHOCKS

Rear Leaf Springs / Shackle & Spring Bushings / Related Parts

phone: (937) 678-7249   fax: (937) 678-5886   email: sales@americanpartsdepot.com

secure ordering

Please note that we've added watermarks to some of our photos. The parts do not have these markings on them.

Brackets & Hardware | Rear Leaf Springs | Shackle & Spring Bushings

68-69	AMX (Std)	Rear Leaf Spring - 2 required	111 0000A	$169.00	Qty:
68-69	AMX (HD)	Rear Leaf Spring - 2 required	111 0000B	$179.00	Qty:
68-69	Javelin (Std)	Rear Leaf Spring - 2 required	111 0000C	$169.00	Qty:
68-69	Javelin (HD)	Rear Leaf Spring - 2 required	111 0000D	$179.00	Qty:
70	AMX (Std)	Rear Leaf Spring - 2 required	111 0000E	$159.00	Qty:
70	AMX (HD)	Rear Leaf Spring - 2 required	111 0000F	$169.00	Qty:
70	Javelin (Std)	Rear Leaf Spring - 2 required	111 0000G	$159.00	Qty:
70	Javelin (HD)	Rear Leaf Spring - 2 required	111 0000H	$169.00	Qty:
71-74	Javelin (Std)	Rear Leaf Spring - 2 required	111 0000I	$169.00	Qty:
71-74	AMX, Javelin V8 (HD)	Rear Leaf Spring - 2 required	111 0000J	$179.00	Qty:
78-83	Concord	Rear Leaf Spring - 2 required / 4 Leaf - HD	111 0000K	$149.00	Qty:
64-69	American SIX except Wagon	Rear Leaf Spring - 2 required / 4 Leaf	111 0000L	$219.00	Qty:
66-67	American 290 STD	Rear Leaf Spring - 2 required / 4 Leaf	111 0000L	$219.00	Qty:
72-78	Gremlin V8	Rear Leaf Spring - 2 required / 5 Leaf - HD	111 0000M	$219.00	Qty:
64-69	American	Rear Leaf Spring - 2 required / 4 Leaf - Light Duty	111 0000N	$219.00	Qty:
73-77	Hornet Wagon	Rear Leaf Spring - 2 required / 4 Leaf - Standard	111 0000O	$159.00	Qty:
75-77	Hornet V8	Rear Leaf Spring - 2 required / 4 Leaf - Standard	111 0000O	$159.00	Qty:
80-88	Eagle Sedan & Wagon	Rear Leaf Spring - 2 required	111 0000P	$169.00	Qty:
81-83	Eagle SX4 & Kammback	Rear Leaf Spring - 2 required	111 0000Q	$179.00	Qty:
79-83	Spirit	Rear Leaf Spring - 2 required / 4 Leaf - Heavy Duty	111 0000R	$149.00	Qty:
67-69	SC/Rambler, American V8	Rear Leaf Spring - 6 Leaf - Heavy Duty	111 0000S	$229.00	Qty:
70-73	Hornet	Rear Leaf Spring - 3 Leaf - Standard - 2 req	111 0000T	$199.00	Qty:
74-76	Hornet (exc Wagon)	V8 Rear Leaf Spring - 5 Leaf - Heavy Duty - 2 required	111 0000U	$149.00	Qty:
75-76	Pacer	Rear Leaf Spring - 2 required / 4 Leaf - Standard	111 0000V	$169.00	Qty:
75-76	Pacer	Rear Leaf Spring - 2 required / 4 Leaf - Heavy Duty	111 0000W	$169.00	Qty:
77-78	Pacer Wagon (Six)	Rear Leaf Spring - 2 required / 4 Leaf - Standard	111 0000X	$169.00	Qty:
77-78	Pacer Wagon (Six)	Rear Leaf Spring - 2 required / 4 Leaf - Heavy Duty	111 0000Y	$169.00	Qty:
79-80	Pacer Wagon	Rear Leaf Spring - 2 required / 4 Leaf - Heavy Duty	111 0000CC	$169.00	Qty:
80-88	Eagle Wagon	Rear Leaf Spring - 4 Leaf - Heavy Duty - 2 req	111 0000Z	$149.00	Qty:
41-42	600 (exc Bus Cpe & Brougham)	Rear Coil Spring Set - Regular	N310 7067(2)	$250.00	Qty:
46-E48	600	Rear Coil Spring Set - Regular (to K-220913 on '48)  - see above photo	N310 7067(2)	$250.00	Qty:
41-42	600	Rear Coil Spring - Heavy Duty - 2 required	N311 1371	$75.00	Qty:
49-51	Amb, Statesman	Rear Coil Spring - Heavy Duty	N312 4576	$75.00	Qty:

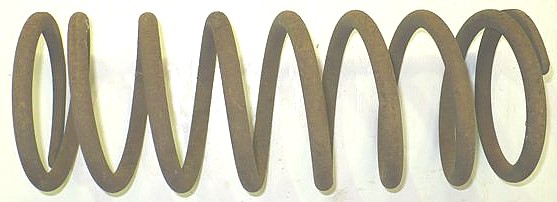

52-E54	Amb, Statesman	Rear Coil Spring - Heavy Duty (Before K-630356 or R-735314 on '54's w/Cont Kit) - see above photo	N312 4576	$75.00	Qty:
54	Rambler 4dr Sedan & Wagon	Rear Spring Hanger Conversion Kit - missing shackles & spring front bushings - This is a kit that was offered to convert '54 Rambler 108" models to the '55 style rear shackles and spring hangers - parts are the same as on all '55 Ramblers	N311 7468	$75.00	Qty:
50-55 58-63	Rambler American	LH Leaf Spring Front Bracket - 1 required	N313 0333	$25.00	Qty:
50-55 58-63	Rambler American	RH Leaf Spring Front Bracket - 1 required	N313 0334	$25.00	Qty:
50-88	All	Leaf Spring Center Bolt Kit - 2 required	111 1600	$5.00	Qty:
50-83	All	U-Bolt Nut - 1/2-20 (for fine thread U-bolts)	111 3202	$4.00	Qty:
50-83	All	Rear Spring U-Bolt Nut Kit - 1 required (for fine thread U-bolts - includes special "high" nuts shown above)	111 3202A	$30.00	Qty:
50-83	All	Rear Spring U-Bolt Nut Kit - 1 required (for coarse thread U-bolts)	111 3202B	$10.00	Qty:

68-69	AMX, Javelin	Rear Spring Shackle	111 7001A	$39.00	Qty:
70-74	AMX, Javelin	Rear Spring Shackle Kit - 2 required	111 7001B	$39.00	Qty:
70-E73	Hornet, Gremlin	Rear Spring Shackle Kit - 2 required - NOTE: for '73 Type 1. (see above photo)	111 7001B	$39.00	Qty:
68-74	AMX, Javelin	Rear Spring Front Bushing - 2 required	110 3302	$20.00	Qty:
70-77	Gremlin except 4 cyl	Rear Spring Front Bushing - 2 req (see above photo)	110 3302	$20.00	Qty:
64-69	American	Rear Spring Front Bushing	110 3302A	$48.00	Qty:
41-42 46-48	Ambassador 6 & 8 Ambassador 6	Rear Spring Front Bushing - 4 req	N310 7490	$10.00	Qty:
64	American	Rear Spring Front Bolt Inner Seal - 2 required	N317 1687	$4.00	Qty:
64	American	Rear Spring Front Bolt Outer Seal - 2 required	N317 1688	$4.00	Qty:
68-69 64-69	AMX, Javelin American	Upper Shackle Bushing - shorten for '64-'69 American - 4 req	111 7003	$7.50	Qty:
68-69	AMX, Javelin	Lower Shackle Bushing - 2 req	111 7004	$20.00	Qty:
64-69	American, Rambler	Rear Spring Rear Bushing - 2 req	111 7004A	$22.00	Qty:
70-74 70-E73 75-80	AMX, Javelin Hornet, Gremlin Pacer	Shackle Bushing - 8 req	111 7002	$5.00	Qty:
L73-88	Hornet, Gremlin, Concord, Spirit Eagle	Shackle Bushing - 4 required - NOTE: Can be shortened to use for upper shackle bushing on these applications  (see above photo)	111 7002	$5.00	Qty:
68-69	AMX, Javelin	Rear Spring and Shackle Bushing Kit (Polyurethane)- 1 req.	111 7002B	$69.00	Qty:
70-74	AMX, Javelin	Rear Spring and Shackle Bushing Kit (Polyurethane)- 1 req.	111 7002C	$69.00	Qty:
70-77 E70	Gremlin Hornet	Rear Spring and Shackle Bushing Kit (Polyurethane) (on '70 Hornet w/1 1/2" dia front bushing) - 1 required (see above photo)	111 7002C	$69.00	Qty:
L73-77	Hornet	Rear Spring and Shackle Bushing Kit (Polyurethane) - 1 required	111 7002D	$69.00	Qty:
